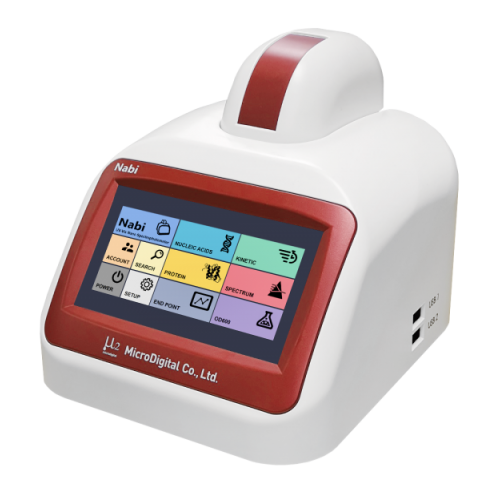

Nabi – UV/VIS Nano Spectrophotometer can conveniently read samples in cuvette or microvolume, and also receive results from single wavelength and full spectrum Nabi is a standalone instrument which utilizes 7.0 inch touch-enabled LC. All data can be transferred to PC just with a USB.
- Sample processing in cuvette and micro volume pedestal
- Spectrometry analyzes single or full spectrum
- Small and portable size
- Easy maneuver/operation with 7” LCD screen (Stand-alone)
- Easy back up with a USB Flash drive
- Parameters: DNA/RNA, Protein, Cell, End point, Kinetic, Spectrum
General Specification
|
Light Source |
Xenon Flash Lamp |
|
Detector |
CCD (2,048 Pixels), (reference beam available) |
|
Wavelength Accuracy |
±1 nm |
|
Wavelength Range |
190 – 1,100 nm |
|
Spectral Resolution |
0.3 nm |
|
Dimension |
220 x 280 x 220 mm |
|
Weight |
5 kg |
Nano-Volume Specification
|
Absorbance Precision |
1% at 100 ng/µl |
|
Absorbance Range |
0 – 300 Abs. (10 nm equivalent) |
|
Detection Limit |
2 ng/µl (dsDNA) |
|
Maximum Concentration |
15,000 ng/µl (dsDNA) |
|
Measurement Time |
5 sec |
|
Minimum Sample Size |
1 µl |
|
Path Length |
0.01 – 1.2 mm (Auto-ranging) |
Cuvette Specification
|
Beam Height |
8.5 mm |
|
Absorbance Range |
0.002 – 2.0 Abs. |
|
Measurement Time |
3 sec |
