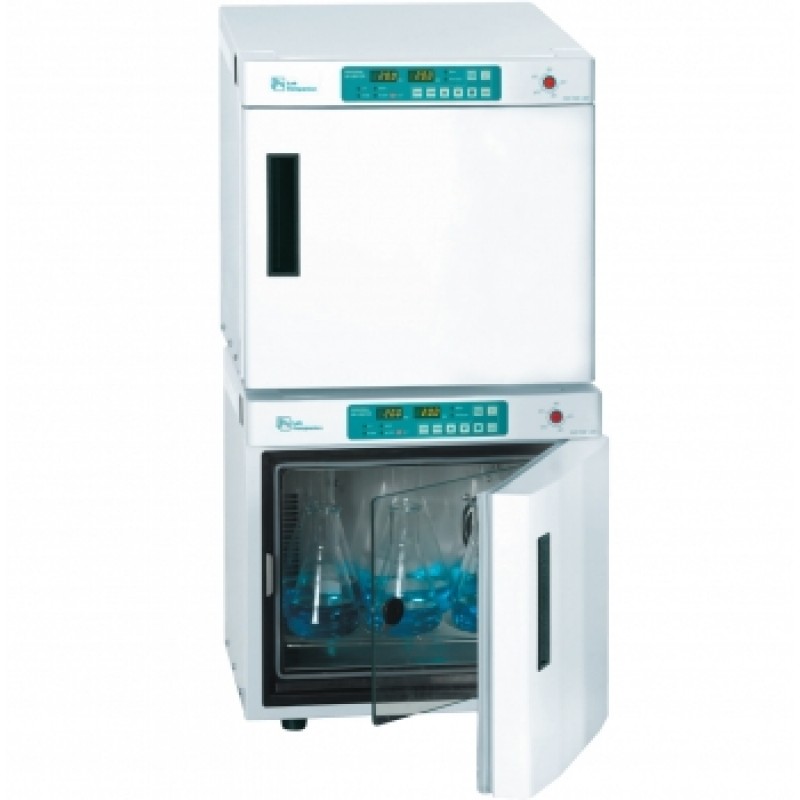

Low Temp. Incubators (Personal)

Low Temp. Incubators (Personal)

Brand: Jeiotech
Product Code: ILP-02/12
Availability: In Stock

Compact, stackable, energy-efficient, and yet exceptionally reliable low temperature incubators using peltier technology.

Model Name : ILP-02/12

Performance

  • Temperature range from ambient +10℃to 40℃.
    - Contrary to conventional compressor-cooled incubators, peltier cooling technology generates little vibration, noise, and heat.
  • Microprocessor PID control /Temperature calibration / Automatic tuning.
  • Adjustable 3-step fan speed with defrosting time and period control.

Convenience

  • Space-saving design allows even the smaller (14L) unit to hold two 1000mL Erlenmeyer flasks.
  • Intuitive control panel with bright LED display. (0.1℃resolution)
  • Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
  • Convenient preset function for 3 most commonly used temperature settings.
  • Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
  • Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
  • Environment-friendly insulation material (EPDM) used for safety and convenience. (compliant with ASTM-C534 specification)
  • RS-232 interface for external control and data collection.
  • Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)

Safety

  • Automatic run after power interruption.
  • Keypad lock function prevents accidental changes during operation.
  • Over-temperature and over-current protection.
  • Audible and visible open door alarms.



Model

ILP-02

ILP-12

Chamber volume (L / cu ft)

14 / 0.5

48 / 1.7

Temperature

Range (℃ / ℉)

+10 to 40℃ (50~104℉) at ambient temperature of 25℃

Fluctuation 1) at 25℃ (±℃ / ℉)

0.1 / 0.18

Variation 1) at 25℃ (±℃ / ℉)

0.5 / 0.9

0.4 / 0.72

Dimension(W×D×H)

Interior (mm / inch)

315×200×230/ 12.4×7.9×9.1

334×334×430/ 13.1×13.1×17

Exterior (mm / inch)

430×495×400/ 17×19.4×15.7

430×665×620/ 17×26.2×24.4

No. of wire shelf (standard / max.)

2 / 11

3 / 25

Net weight (Kg / lbs)

27.5 / 60.6

49 / 108

Electrical requirements (230V)

60Hz, 1.8A

50Hz, 1.8A

60Hz, 3.5A

50Hz, 3.5A

Cat. No.

AAH24032K

AAH24032K

AAH24042K

AAH24042K

Electrical requirements (120V)

60Hz, 3.4A

60Hz, 6.7A

Cat. No.

AAH24033U

AAH24043U

1) Technical data according to DIN 12880.
