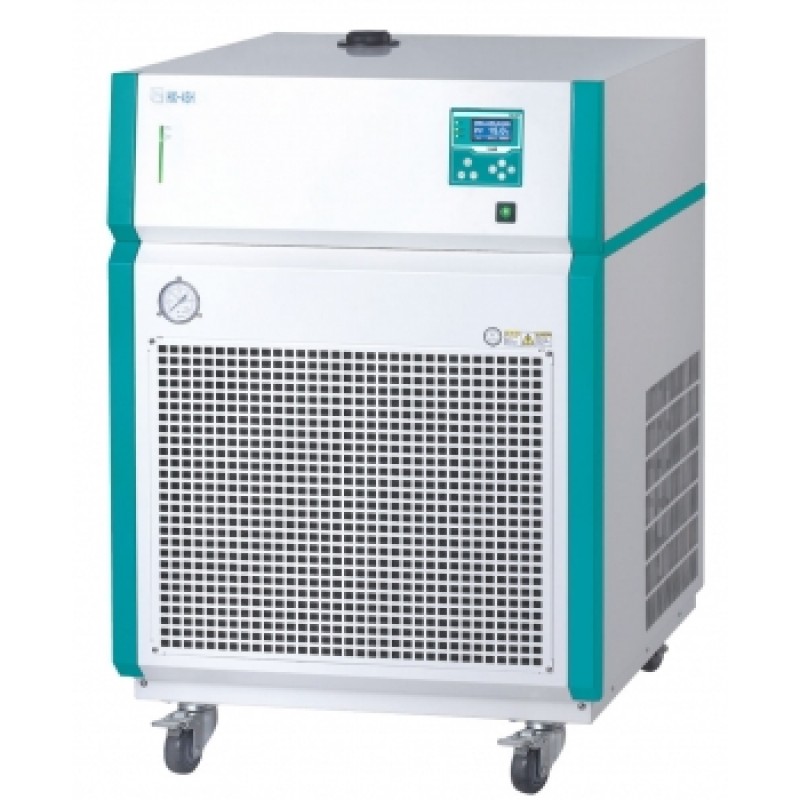

Recirculating Coolers (General)

Brand: Jeiotech

Product Code: HX-20/20H/25/25H/35H/45H/55H

Availability: In Stock

0 reviews | Write a review

Description
Reviews (0)

Providing a constant temperature control and high cooling efficiency.

Model Name : HX-20/20H/25/25H/35H/45H/55H

Performance

Temperature range from 3°Cto 40°C.
High cooling capacity up to 7.1kW at 20°C.
Powerful circulating pumps up to 40L/min., 4.3 bar.
Refrigerating system is designed to reduce energy consumption and maximize refrigerating efficiency.
Pump pressure can be controlled using a by-pass function. (for H type)

Convenience

Clear and easy-to-use LCD display. (resolution 0.1°C)
Bright LED water level indicator can be seen from a distance.
Built in pressure gauge for checking pump pressure at a glance.
High/low pressure gauges for condition diagnosis of refrigerating system at a glance. (for H type)
Wide filling inlet for easy and safe pouring of solution into the unit.
Suitable model is selectable between magnetic pump, centrifugal pump.
Double service valve prevents refrigerant leakage for easy maintenance.
Removable gridded vent for easy maintenance of condenser.
Built-in casters for easy transport and installation.

Safety

Self-diagnostic function identifying errors.
Complete safety protection system with warning alarms.
- Low fluid level and dry-running protection; when triggered shows an error symbol on the display and an audible buzzer sound.
- Over-temperature protection; If the equipment operates at over maximum temperature due to external environment, user can simply identify the error with a visual signal or an audible buzzer sound.
- Over-current circuit breaker.
Eco-friendly R-404A refrigerant use for environmental protection.
Splash-proof keypad.

Model		HX-20	HX-25	HX-20H	HX-25H	HX-35H	2)HX-45H	2)HX-55H
Temperature¹⁾(bath fluid : water)	Working temperature range (℃ / ℉)	+3 to 40 / +37.4 to 104
Temperature¹⁾(bath fluid : water)	Temperaturestability at 15℃ (±℃ / ℉)	1 / 1.8
Cooling capacity(bath fluid : water)	at 20℃ (kW)	2.2	2.8	2.2	2.8	4.2	5.5	8.1
	at 10℃ (kW)	1.6	2	1.6	2	3.6	4.2	5.9
	at 5℃ (kW)	1.2	1.6	1.2	1.6	2.8	3.4	4.8
Pump	Max. flow rate(L / min, gal / min)	40 / 10.6		32 / 8.5
Pump	Max. pressure (bar / psi)	2 / 29.0		6 / 87.0
Dimension	Max. filling capacity(L / cu ft)	35 / 1.24				45 / 1.59
	For tubing dia.(mm / inch)	20 / 3/4
	Filling inlet(Ø, mm / inch)	50 / 1.9
	Overall (W×L×H, mm / inch)	620×785×990 / 24.4×30.9×39				745×800×1095 / 29.3×31.5×43.1
	Net weight (kg / lbs)	93 / 205	101 / 223	97 / 214	105 / 231	120 / 265	130 / 287	140 / 309
Electrical requirements (230V, 60Hz)		8.5A	9A	9.3A	9.8A	15A	19A
Cat. No.		AAH64011K	AAH64021K	AAH64111K	AAH64121K	AAH64132K	AAH64141K	-
Electrical requirements (230V, 50Hz)		7A	7.6A	7.9A	8.8A	14A
Cat. No.		AAH64012K	AAH64022K	AAH64112K	AAH64122K	AAH64132K	-	-
Electrical requirements (120V, 60Hz)		17A	22A
Cat. No.		AAH64013U	AAH64023U	-	-	-	-	-
Electrical requirements (380V, 60Hz)							10A	11.5A
Cat. No.		-	-	-	-	-	AAH64149K	AAH64159K
Electrical requirements (380V, 50Hz)							7A	8.5A
Cat. No.		-	-	-	-	-	AAH64148K	AAH64158K

1) Technical data according to DIN 12876
2) HX-45H, 55H is recorded by 380V, 60Hz.
※ Above specification value is recorded by 50Hz.
※ Product performance may be affected by ambient temperatures.
