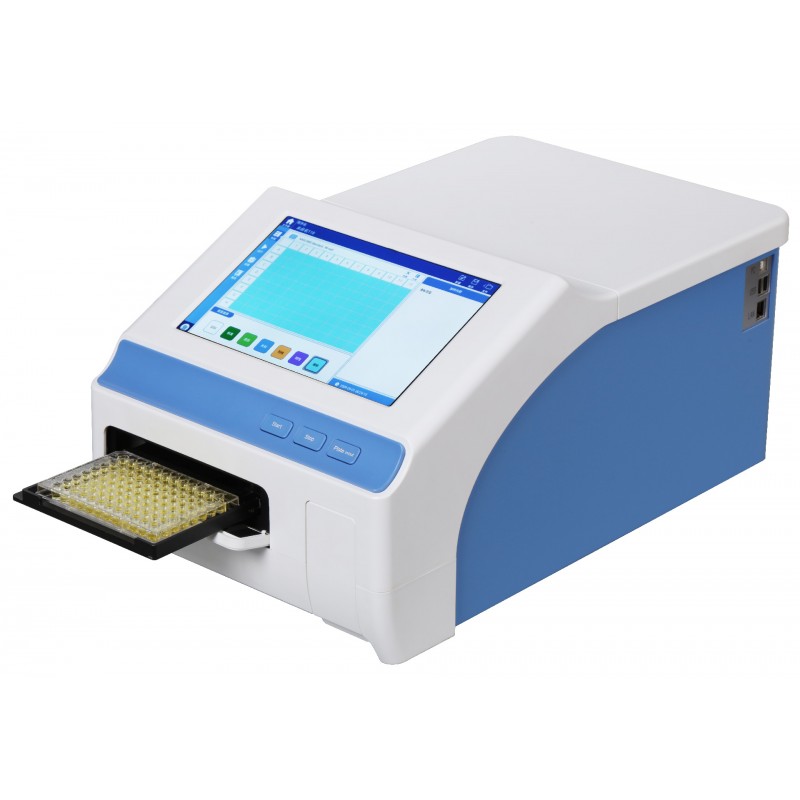

FlexA-200 Microplate Reader

FlexA-200 Microplate Reader

Brand: Allsheng
Product Code: FlexA-200
Availability: In Stock

FlexA-200 is a UV/Vis microplate spectrophotometer offering free wavelength selection, so being an ideal tool for virtually any photometric research application, such as DNA, RNA, protein analysis and more. It offers exceptional usability through its intuitive, user-friendly internal software and comprehensive ReaderIt-II Software. FlexA-200 microplate reader has been designed to deliver high performance and high quality results with minimal user effort. It measures 96-well and 384-well plates and plate shaking motion is linear.

Feature

  • 10 inch touch screen, and offers stand-alone operation, it is easy to use

Intuitive, user-friendly internal software on a 10 inch touch screen for quick measurements. Easy and logical assays setup for demanding assays with the powerful PC software (ReaderIt-II), the PC software can offer to analysis, review, validate data. It is easy access to data via USB interface and WIFI.

  • Freely selectable wavelengths from 200 - 1000nm for the demands of various assays

Wavelength selection in FlexA-200 is done by using an advanced monochromator system. Any wavelength between 200 to 1000nm can be selected at any time. Using the spectral scanning feature, the whole spectrum of a sample be scanned in 1nm increments to allow identification of the optimal measurement wavelength for a new assay.

  • Both microplate reading for any throughput requirements

It measures 96-well and 384-well plates

  • Flexibility and performance for various photometric applications

FlexA-200 microplate reader supports endpoint, kinetic and spectral scanning assays. It reads 96-well and 384-well microplates with and without lids. A broad wavelength range with the UV area, pathlength correction as well as fast spectral scanning makes it an ideal tool for any photometric research application, including DNA, RNA and protein analysis



Specification

 Model

 FlexA-200

 Display

 10 inch touch screen

 Light source

 Xenon lamp

 Wavelength range

 200 - 1000nm with 1nm steps

 Wavelength accuracy

 ±2nm

 Tepetition

 ±0.2nm

 Wavelength selection

 Monochromator

 Read-out range

 0 - 4.0 OD

 Half-bandwidth of filters

 <2.5nm

 Detector

 Two silicon photoelectric detector, one for measurement, another for reference

 Linearity @450nm

 R2≥0.999 [0.0-3.0Abs]

 Accuracy @450nm

 ±(1.0% + 0.003Abs),(0 - 2.0 Abs]; ±2.0%, (2.0 - 2.5 Abs]

 Precision @450nm

CV < 0.5% or SD<0.003  accurate model; CV < 1.0% fast mode

 Test speed

 8 seconds with 96-well plate (fast mode); 28 seconds with 96-well plate (accurate model)

 Plate shaking

 Linear; three options for speed

 Incubator

 From RT + 4℃ to 45℃

 UI

 Integrated software or PC control software

 Analysis software

 ReaderIt-II

 User interface

 Touch screen, android system, 10 inch touch screen, external keyboard & mouse

 Storage

16G , more than 20,000 test records

 Port

2 USB A type ports, 1 USB B type port, 1 Ethernet port

 Automated system

 Temporarily incompatible with automated systems

 Power supply

 DC24V  6.67A

 Dimensions (W×D×H) mm

300×500×260mm

 Weight

 15.5kg
