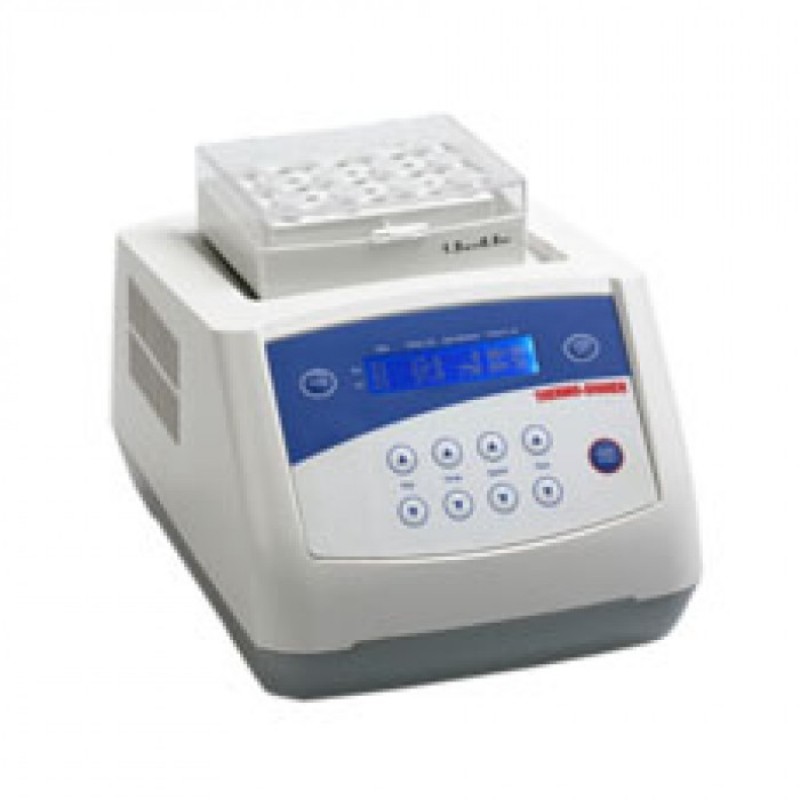

MSC-100 Thermo Shaker Incubator

MSC-100 Thermo Shaker Incubator

Brand: Allsheng
Product Code: MSC-100
Availability: In Stock

Features for MSC-100 Thermo Shaker

1. LCD display. It is easy to setup and use.
2. Accurately control and display time, temprature and speed
3. Over heating protection device ensures safety & reliability
4. Temperature can be calibrated to meet user's needs.
5. Low noise working even under the speed of 1,500rpm
6. Conforms to CE safty standard
7. Custom blocks are available to satisfy experimental requirement
8. Gental, reliable mixing with long-life brushless motor

Specification for MSC-100 Thermo Shaker
1. Temperature Setting Range: 0℃~100℃
2. Temperature Control Range: 0℃~100℃
3. Timing Range: 1 min~99h59min
4. Mixing Speed: 200rpm-1500rpm
5. Mixing Orbit: 2mm
6. Temperature Control Accuracy: <± 0.5 ℃
7. Display Accuracy: 0.1 ℃
8. Heating Time: ≤20min (from 20 ℃ to 100 ℃)
9. Cooling time: ≤25min(from ambient to ambient - 20 ℃)
                              ≤15min(from 100 ℃ to 20 ℃)
10. Cooling depth:
      1) The block temperature can be descended to 0℃ if the ambient temperature is 20℃
      2) The block temperature can be descended to 4℃ if the ambient temperature is 25℃

      3) The block temperature can be descended to 10℃ if the ambient temperature is 30℃
11. Cooling and Heating Parts: TE Module
12. Supply Power: AC220V 50/60Hz or AC120V 50/60Hz
13. Dimension ( LxWxH) mm: 300x220x175
14. Net Weight: 8.5 kg






Block for MSC-100





Type

Description

Max.Temperature

Max.speed

Remark

A

96×0.2ml

100℃

1500



B

54×0.5ml

100℃

1500



C

35×1.5ml

100℃

1500



D

35×2.0ml

100℃

1500



E

15×0.5ml+20×1.5ml

100℃

1500



F

24×Diameter ≤ φ12mm tubes

100℃

1200



G

12×15ml Falcon tube

100℃

750



H

6×50 ml Falcon tube

100℃

750



I

103x67x30mm (Bath Block)

100℃

1500



J

96 x 0.2 ml Microplate

100℃

1500



K

24×5ml  tube

100℃

1200



L

96-Deep well plate

80℃

900






            A block                              B block                            C block                                   D block


           E block                               F block                              G block                                H block


           I block                              J block                                 K block                                 L block
