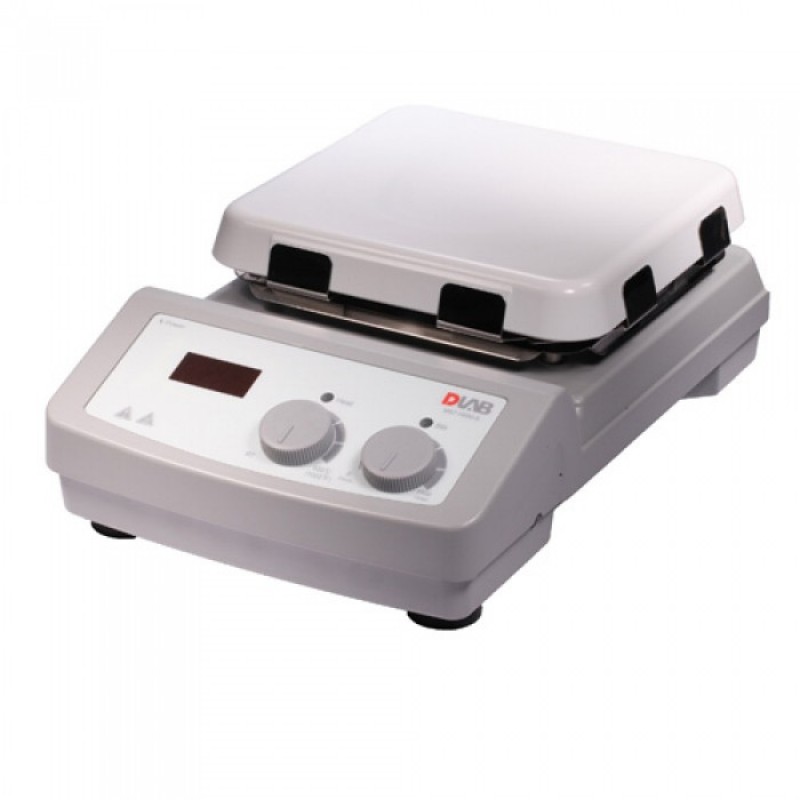

MS7-H550-S Magnetic Stirrers

MS7-H550-S Magnetic Stirrers

Product Code: MS7-H550-S
Availability: In Stock

• LED display for precise monitoring of temperature

• A wide speed range from 0 to 1500rpm

• Max. heating plate temperature at 550°C

• External temperature control accuarcy of ±0.2℃ is possible by connecting the temperature sensor(PT 1000)

• The “HOT” warning will flash when the plate temperature is above 50°C even if the hotplate is turned off



 Dimension of work plate  [W x D]

 184x184mm (7 inch)

 Work plate material

 Glass ceramic

 Motor type

 Shaded pole motor

 Motor rating input

 15W

 Motor rating output

 1.5W

 Power

 1030W

 Heating output

 1000W

 Voltage

 100-120/200-240V 50/60Hz

 Stirring positions

 1

 Max. stirring quantity, [H2O]

 10L

 Max. magnetic bar[length]

 80mm

 Speed range

 0-1500rpm

 Speed display

 Scale

 Temperature display

 LED

 Heating temperature range

 Room temp.-550°C, increment 5°C

 Control accuracy of work plate

 ±10°C

 Over temperature protection

 580°C

 Temperature display accuracy

 ±1°C

 External temperature sensor

 PT1000 (accuracy ±0.2)

 "Hot" warning

 50°C

 Protection class

 IP21

 Dimension [W x D x H]

 215x360x112mm

 Weight

 4.5kg

 Permissible ambient temperature and humudty

 5-40°C, 80%
