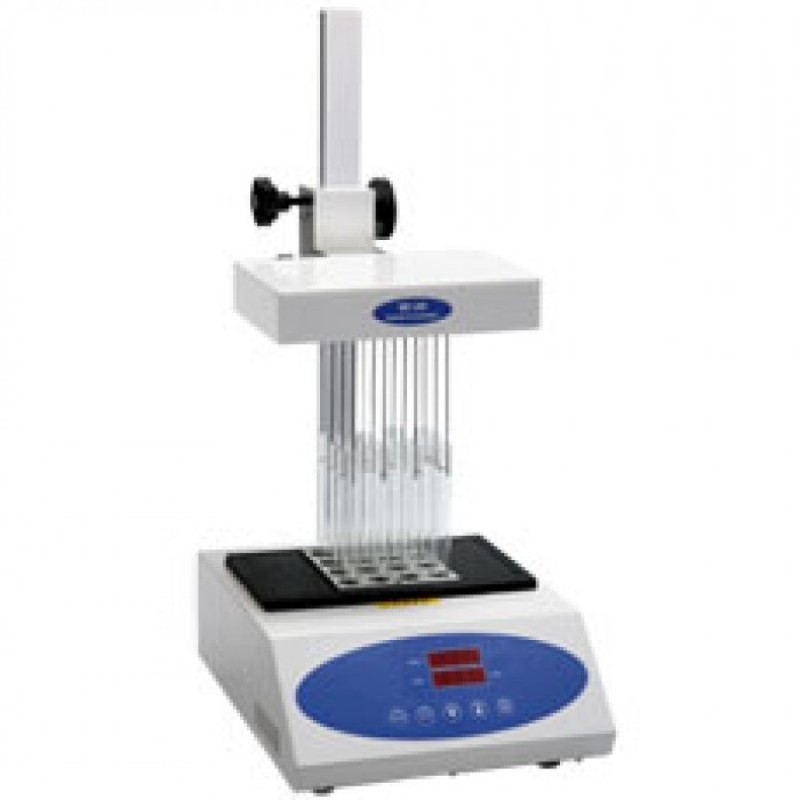

MD200-1 Sample concentrator

MD200-1 Sample concentrator

Brand: Allsheng
Product Code: MD200-1
Availability: In Stock

Features

1. High precision and wide range of temperature control

2. Blowing a large number of samples at one time

3. Blowing each sample independently

4. Amount of airflow can be adjusted

5. Easy operation; safe and reliable to use


Specification
1.Temperature range: RT.+5~150℃
2.Temperature control discrepancy:   ±0.5℃ (RT+5℃~150℃)
                                                                  ≤ ±1℃ (100℃ ~ 150℃)
3. Low Nitrogen consumption of 330ml/min/sample
4. Time required for temperature to increase from 40℃ to 150℃: 30m minutes
5 .Maximum input power: 200W
6. Temp. control discrepancy: ± 0.1℃
7. Dimensions: 280W x240D x 500H
8. Net weight: 6Kg
9. All units will fit and are recommended to be used in a bench-top.ventiated hood
10. Needles length: 150mm
11. Standard Blocks: See "Blocks for MD200"

Blocks for MD200







Type

Parameter

Capacity

Dimension (mm)

BK01

6 mm

49

96 x 96 x 49

BK02

7 mm

49

96 x 96 x 49

BK03

10 mm

25

96 x 96 x 49

BK04

12 mm

25

96 x 96 x 49

BK05

13 mm

25

96 x 96 x 49

BK06

15 mm

12

96 x 96 x 49

BK07

15 mm

16

96 x 96 x 49

BK08

16 mm

12

96 x 96 x 49

BK09

16 mm

16

96 x 96 x 49

BK10

19 mm

12

96 x 96 x 49

BK11

19 mm

16

96 x 96 x 49

BK12

20 mm

9

96 x 96 x 49

BK13

26 mm

9

96 x 96 x 49

BK14

28 mm

4

96 x 96 x 49

BK15

40 mm

4

96 x 96 x 49

BK16

0.5 ml Centrifuge tube

49

96 x 96 x 49

BK17

1.5 ml Centrifuge tube

25

96 x 96 x 49

BK18

2.0 ml Centrifuge tube

25

96 x 96 x 49
