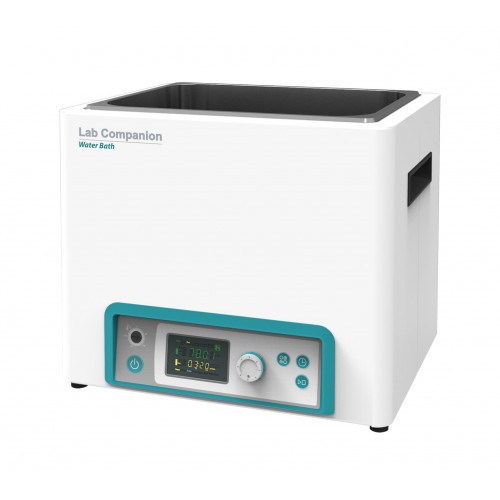

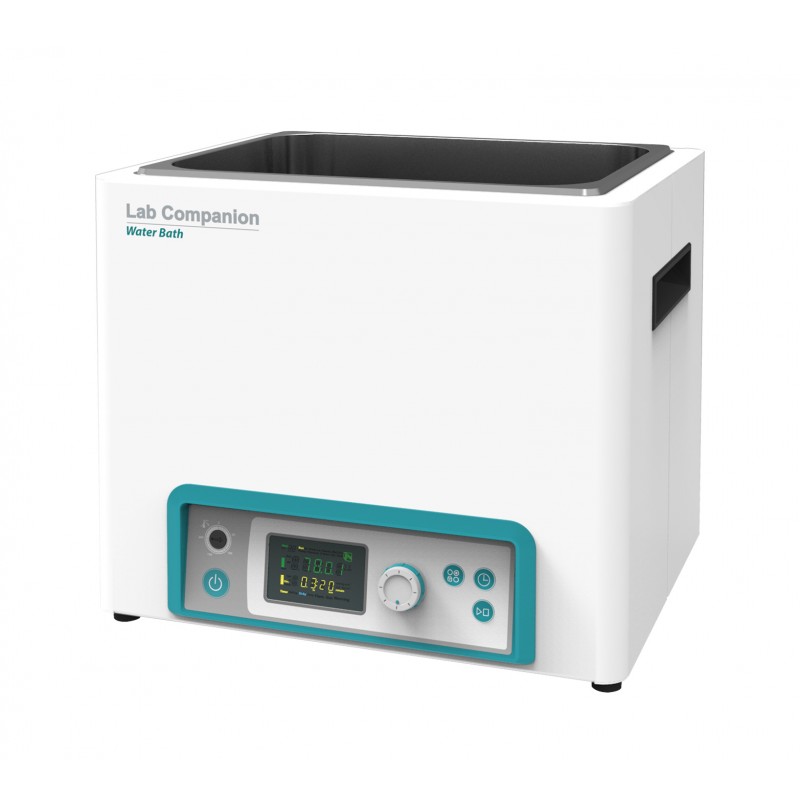

Heating Baths

Brand: Jeiotech

Product Code: -

Availability: In Stock

0 reviews | Write a review

Description
Reviews (0)

Performance

Temperature range from ambient +7℃ to 100℃.

Microprocessor PID control / Automatic tuning / Calibration.

Convenience

Easy readout digital LED displays. (0.1℃resolution)

Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)

Programming functions are ideal for critical research quality control, and regulatory tests.

Convenient memory function of up to three frequently set temperature.

Corrosion-resistant stainless steel construction allowing other bath fluids as well as water and silicone fluids.

Low-profile reservoir design.

Safety

Isolated design of heater, and sensor by a baffle plate to protect users and samples against direct contact.

Complete safety protection system with warning alarms.
- Low fluid level and dry-running, over-temperature, over-current.

Splash-proof keypad.

Model		BW3-05G	BW3-10G	BW3-20G
Bath volume (L / cu ft)		3.5 / 0.1	11.5 / 0.4	20 / 0.7
Temperature	Working temperature range (℃ / ℉)	Amb. +7 to 100 / Amb. +12.6 to 212
	Temperature stability at 50℃ (±℃ / ℉)	0.4 / 0.72	0.3 / 0.54	0.3 / 0.54
	Heat up time to 70℃ (min) (±℃ / ℉)	34	36	44
Dimension	Bath opening / depth (W×L, D) (mm / inch)	240×136, 150/ 9.4×5.4, 5.9	300×240, 200/ 11.8×9.5, 7.9	498×300, 200/ 19.6×11.8, 7.9
	Exterior with gable cover (W×L×H) (mm / inch)	307×200×264/ 12.1×7.9×10.4	360×300×294 / 14.2×11.8×11.6	564×356×294 / 22.2×14×11.6
	Net weight (kg / lbs)	6.5 / 14.3	10 / 22	18.5 / 40.8
Electrical requirements (230V, 50 / 60Hz)		3A	4.3A	8.7A
Cat. No.		AAH41305K	AAH41315K	AAH41325K
Electrical requirements (120V, 50 / 60Hz)		5.8A	8.3A	8.3A
Cat. No.		AAH41306U	AAH41316U	AAH41326U

※ The lowest temperature that can be controlled depends on changes in room temperature and sample temperature. Therefore, please contact the distributor of our products before purchasing for technical consultation.

※ Technical data (according to DIN 12876).

※ Bath fluid : Water.
